At Shusa Technologies, we offer a comprehensive range of high-performance CNC Machines and Motion Control Solutions designed to meet the evolving demands of modern manufacturing. Our product portfolio includes Milling Machines, Rotary Engraving Machines, Turning Machines, Grinding Machines, and XY Axis Stages – each engineered with precision, reliability, and advanced automation.
Built with rigid structural stability, high-speed spindle systems, and micron-level accuracy, our machines deliver superior machining performance across industries such as automotive, medical, tooling, and metal Grinding. Whether it’s complex part machining, fine engraving, high-volume turning, precision grinding, or motion control positioning, our solutions ensure repeatability, durability, and efficiency in every operation.
PRECISION MILLING MACHINE
X Travel- Upto 200mmY Travel- 120 mm
Z Travel - 80 mm
Accuracy: 0.008mm
Table: 275mm x 150 mm
Load : 15 Kg maxi.
RPM: max upto 24K (variable)
Fixture: on request
Industry: Implant, Capsule mould inserts
X Travel : 175mm
Z Travel : 150 mm
Accuracy: 0.008mm
RPM: 10K max ( variable)
Spindle Collet : 12mm, 12.7mm, 20 mm
Industry : Implant
PRECISION TURNING MACHINE
PRECISION GRINDING MACHINE
( Under Development)
X Travel (Longitudinal) : 300 mm
Y Travel (Cross- Servo): 250 mm
Z Travel(Servo) : 200 mm
Y step feed: 20 micron ( ball screw)
Z step feed : 0.01 micron (ball screw)
Z step feed (optional - theoretically with ground ball screw ) : 0.008 mm
Flatness on table : 0.008 mm
RPM: 3K (variable)
Industry : Plastic mould inserts ,Implant
X Travel: upto 3000 mm ( optional available)
Z Travel: 250 mm
Rotary axis : Continuous Servo
Maximum diameter: 300 mm
Pi*300mm diameter Accuracy: 0.02 mm
Between center : 3200mm
Spindle RPM : 36K ( variable)
Work part weight : 3000 kg maximum
Industry: Printing , Resin embossing
PRECISION ROTARY ENGRAVING MACHINE:

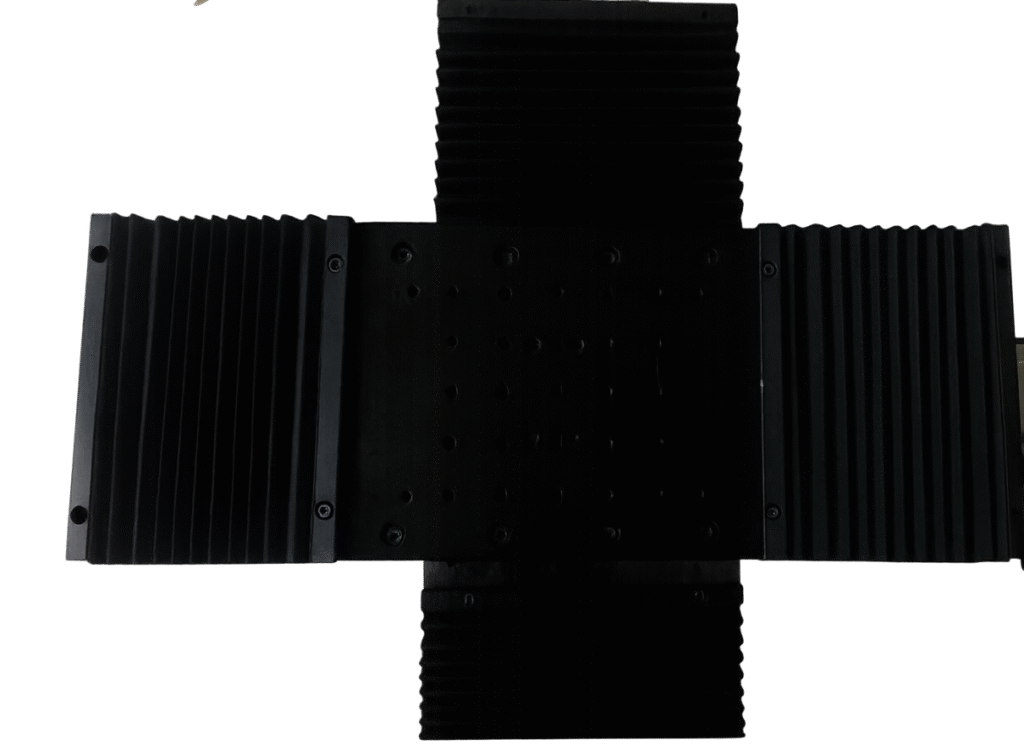

XY Stage
Travel: up to 200 mm
Load capacity: 12 Kg maxi
Accuracy : 0.010 mm
Acceleration: 0.3 G
( Stand alone axis or XY assembled options possible )
Industry : Pick and place, Blood testing laboratory
